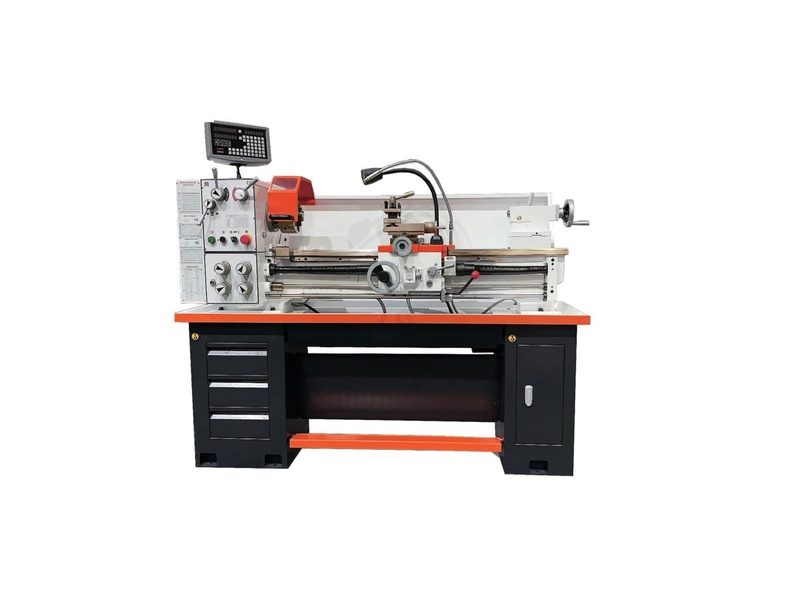

C0636A Bench Lathe

MODEL C0636A Bench Lathe

Compact bench lathe with easy-operation speed change levers. Headstock gears and bed guideways are hardened and precision ground for long-lasting accuracy. Optional 51 mm spindle bore and variable speed drive available for flexible workshop turning.

Model	C0636A / C0636C / C0636V
Max. swing over bed	330 / 360 / 360 mm
Max. swing over cross slide	212 / 508 / 508 mm
Max. swing in gap	476 / 225 / 225 mm
Width of bed	182 / 189 / 189 mm
Max. length of workpiece	1000 mm
Spindle bore	38 / 38 (Opt. 51) / 51 mm
Spindle taper	M.T.No.5 / M.T.No.5 (No.6) / M.T.No.6
Spindle speed range	65-1810 / 70-2000 / 30-450+450-3000 r/min
Spindle speeds	9 / 8 / 2 steps
Spindle nose	- / D4 (D5) / D5
Top slide travel	85 / 95 / 95 mm
Cross slide travel	160 / 185 / 185 mm
Cutting tool section	16×16 mm
Metric threads	0.4-7/32 / 0.4-7/26 / 0.4-10/26
Imperial threads	60-4/36 / 56-4/34 / 56-4/34 TPI
Longitudinal feed	0.053-1.291 / 0.052-1.392 / 0.052-1.392 mm/rev
Cross feed	0.011-0.275 / 0.014-0.38 / 0.014-0.38 mm/rev
Tailstock quill diameter	32 / 32 / 42 mm
Tailstock sleeve travel	95 / 100 / 100 mm
Tailstock taper	M.T.No.3
Motor power	1.5 / 1.5 / 2.2 kW
Packing size (L×W×H)	1970×760×1600 / 1970×760×1600 / 1970×830×1600 mm
Net weight	480 / 550 / 600 kg
