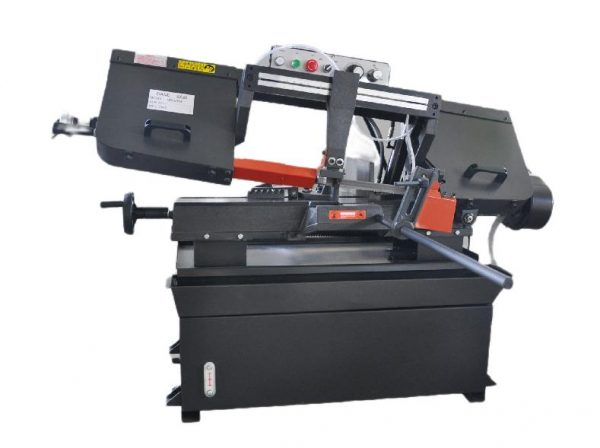

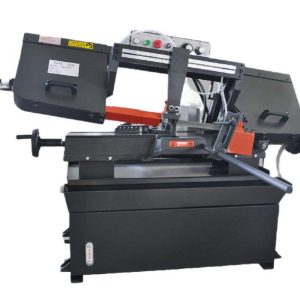

Metal Band SawW5023M
Feathers :
Cwonvincing arguments:quality,efficiency and price
·User-friendly safety switch for IP 54 with low-voltage release
·Solid casting type
·Silent operation
·With high-grade bimetallic saw band supplied as standard
·Material limit stop
·Lowering of the saw bow by means of the hydraulic support cylinder with infinitely variable throttle valve
·Automatic switch-off of the saw after termination of cutting
Standard accessories:
Band saw stand
Coolant system
Optional accessories:
Machine lamp
Saw blade
Specification :
| Model | W5023M |
| Motor power | 1100/1500W 220v/400v 4pole or 8pole three phase |
| Reduce gear rate: | 25:1 |
| Wheel diameter | 380mm |
| Saw blade size | 3160x27x0.9mm |
| Blade speed | 34 or 68 m/min |
| Cutting capacity max | 270mm round 260mm square 220x370mm rectangle |
| Cutting angle | 0°15°30°45°60° |
| Coolant pump | 25w 400v |
| Packing size | 1770x765x1120mm |
| N.W./G.W. | 365 / 415kgs |
