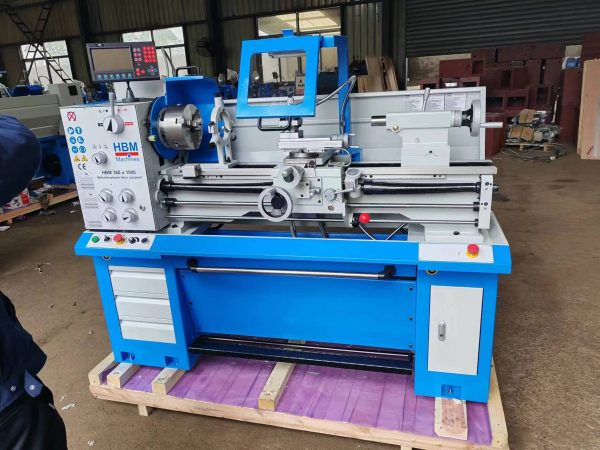

Lathe Machine W360L
Product Description:
The surface of the bed rail is quenched and precision ground
Spindle support adopts precision tapered roller bearing
The main shaft gear is made of high quality and surface hardened and ground
Removable saddle provides a large processing range
Easy and easy to operate shifting mechanism
Easy to operate the cutter box has a variety of feeds to choose from and can drive a variety of threads
Standard Accessories:
| 3-jaw chuck | Halogen work lamp |
| 4-jaw chuck with back plate | Foot brake |
| Steady rest | Coolant system |
| Follow rest | |
| Face plate |
Optional Accessories :
| Quick change tool post |
| Leadscrew cover |
| Turning tools |
| Digital read out |
| Taper turning attachment |
Spceification:
| MODEL | W360L |
| Distance between centers | 1000mm |
| Max. swing over bed | 360mm |
| Max. swing over cross | 195mm |
| Max. swing in gap | 500mm |
| Width of bed | 187mm |
| Spindle | |
| Spindle speed range | 8step, 70-2000rpm |
| Spindle bore | 38mm |
| Spindle nose | D1-4 |
| Spindle taper | MT5 |
| Center height | 180mm |
| Thread cutting | |
| Threads metric pitches | 0. 4-7mm/rev 32 thread pitches |
| Threads imperial pitches | 8-112T.P.I. 40 thread pitches |
| Threads diametral | 8-224 D.P; 23 kinds |
| Threads module pitches | 0.25-3M.P; 15 kinds |
| Range of feeds | |
| Compound rest travel | 95mm |
| Cross slide travel | 180mm |
| Longitudinal feeds | 0.052-1.392mm/rev /40kinds |
| Cross feeds range | 0. 4-7mm/rev 32 thread pitches (Metric lathe) 8-112T.P.I. 40 thread pitches (Inch lathe) |
| Tailstock sleeve | |
| External diameter | 32mm |
| Max. travel | 100mm |
| Taper of bore | MT3 |
| Motor | |
| Spindle motor power | 1.5kw 380V/50hz/3Ph |
| Coolant pump power | 40w |
| Others | |
| Tool section | 16*16mm |
| Packing dimension | 1930*760*1450mm |
| Net/Gross weight | 550/600kg |
